ATMOCE M-ELV: modular home battery for your own solar power
A compact, expandable battery that can be installed alongside your existing solar panels. FlexxWatt first assesses whether storage suits your consumption and which capacity and power fit.
* The Dutch ATMOCE page states 7 kWh; the English ATMOCE page states 8 kWh. We confirm the supplied version in your quotation.
M-ELV BattBank · residential
Residential BattBank: compact, stackable storage for larger homes
The residential BattBank combines one to three MS-16K-U modules with the dedicated residential Stack Control Unit cap & base kit MS-SCU-RES-U. It bridges the M-ELV wall battery and the commercial (C&I) BattBank: one product family, not an improvised combination of two batteries. Suitable for larger homes and small businesses.

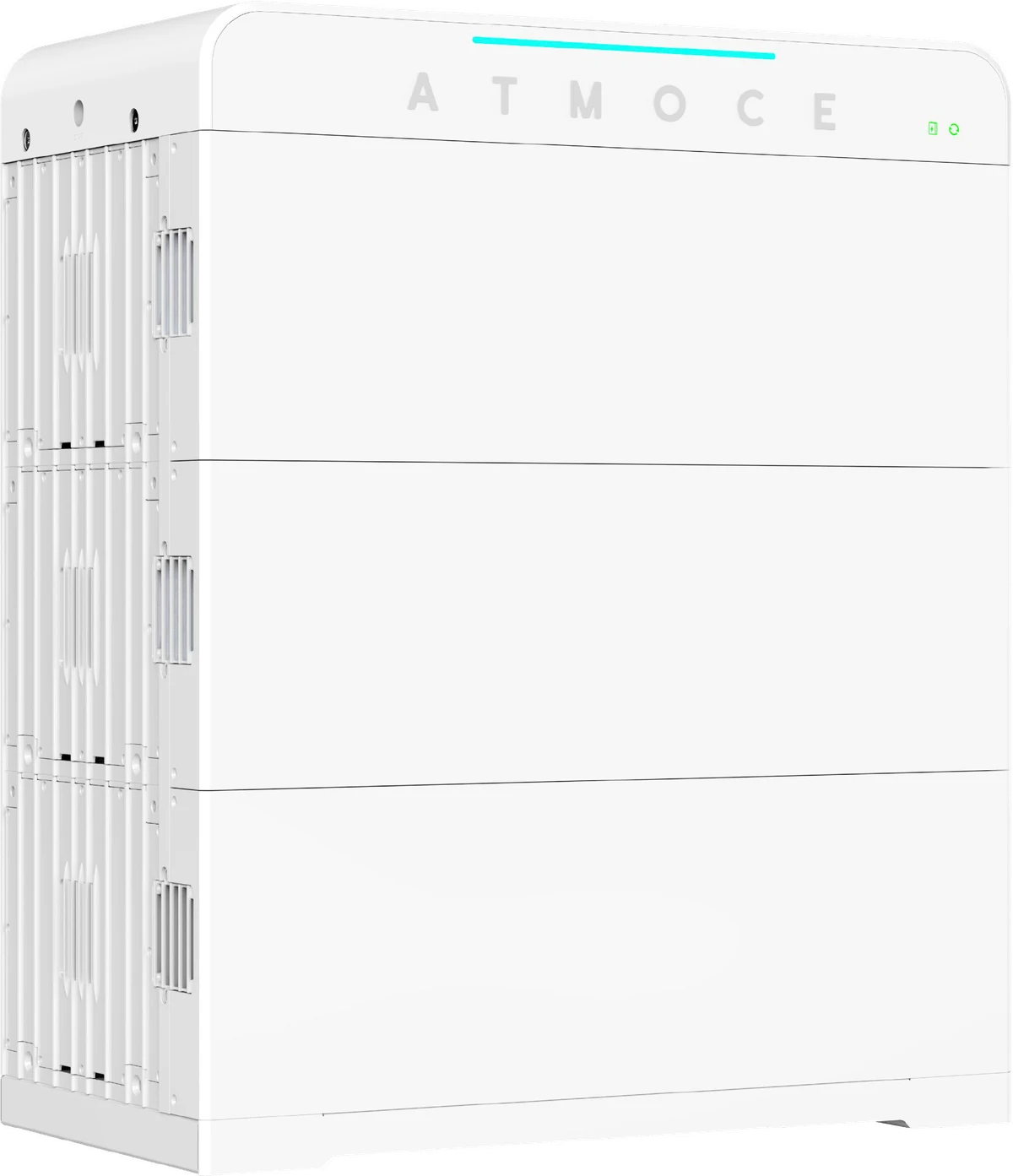

Residential BattBank with three modules – 48.24 kWh. Product image: ATMOCE.
01
M-ELV wall battery
7 kWh wall battery for regular homes.
02
Residential BattBank
MS-16K-U + MS-SCU-RES-U, 1–3 modules per stack, for larger homes and small businesses.
03
C&I BattBank
Separate commercial configuration for larger sites.
16.08 kWh
= one battery module
Total battery capacity
32.16 kWh
= two battery modules
Total battery capacity
48.24 kWh
= three battery modules
Total battery capacity
The 1- and 2-module cards show a schematic representation of the number of modules (with control unit on top and base), not a product photo.
1 Total weight including base and control unit (MS-SCU-RES-U).
Configurations according to the ATMOCE datasheet. Capacity is total battery capacity, not the same as usable capacity. Power is in kVA (apparent power), not kW.
LFP chemistry, nominal 51.2 V DC, max 57.6 V (<60 V DC)
IP66, floor mounted, max 3 modules per stack; module 155 kg; width 880 mm, depth 483 mm
>90% AC round-trip efficiency under test conditions (1 pack, constant 5 kW, ambient temperature)
Up to 15-year warranty, only valid with MS-SCU-RES-U; terms and conditions apply. 10,000 cycles is a datasheet value, not an unconditional lifetime promise.
The effect depends on your consumption, generation, connection and energy contract. Savings are not guaranteed, so we calculate your situation first.
01
Use your own solar power
Solar power stored during the day is used in the evening and at night instead of being exported.
02
Works with existing panels
AC-coupled: according to ATMOCE suitable alongside existing inverters and third-party solar panels.
03
Expand step by step
Modular design. Start with what fits now and expand as consumption grows, for example with an EV or heat pump.
04
Insight in the app
Follow generation, consumption and battery status in ATMOCE Cloud and the ATMOZEN app.
Product image: ATMOCE

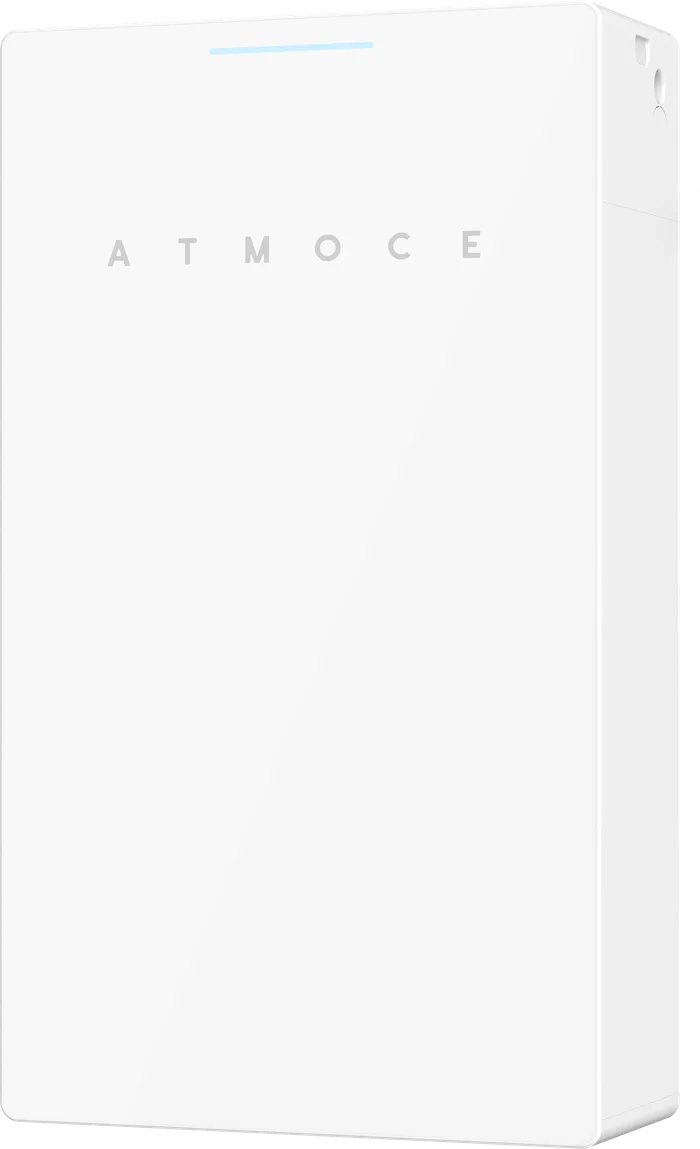

The product
Compact, safe and suitable indoors and outdoors
The M-ELV is wall or floor mounted and operates at a battery voltage below 30 V. According to ATMOCE, one version suits both single-phase and three-phase connections.
Technical data (manufacturer)
Model
MS-7K-U
Cell chemistry
LFP (lithium iron phosphate)
Battery energy
7 kWh (Dutch page) — to be confirmed
Continuous output power
4.5 kVA
Max. output power
5 kVA
Max. continuous charging power
3.75 kVA
AC round-trip efficiency
90%
Number of cycles
10,000
Connection
Single-phase and three-phase (AC-coupled)
Dimensions (H × W × D)
830 × 480 × 195 mm
Weight
73.5 kg (without bracket)
Ingress rating
IP66
Operating temperature
−20 to 55 °C
Warranty
15 years according to ATMOCE NL; terms per quotation
Source: atmoce.com/nl/battery-storage and the official ATMOCE MS-7K-U datasheet. Subject to change by the manufacturer. Warranty terms and compatibility with your inverter are confirmed per situation. Pricing after advice.
Product image: ATMOCE
Backup power
Backup power only with the right configuration
ATMOCE offers a backup solution in which the battery takes over within about 10 ms during a power cut. This requires additional components, such as an ATMOCE M-Gateway and an M-Backup unit, and an adapted installation in your consumer unit.
Only the connected circuits receive backup power, within the available power.
Heavy loads such as a heat pump, induction hob or charger can exceed that power.
Whether whole-house backup is possible is assessed per situation. We make no commitments in advance.
Product image: ATMOCE
Small business
Also for a shop, practice or workshop
For smaller commercial premises with solar panels the M-ELV can be a suitable solution. The ATMOCE BattBank is intended for larger power and capacity needs. Business requests go through personal advice.
